Advanced Features
High reliability and accuracy, fast speed, excellent adaptability. Liveliness detections is built in.
In-house deep learning algorithm:
Accuracy up to 99.9999%, No false detection in a database of 20,000 faces.
Dynamic 1:N recognition & 1:1 identification:
No standing-still is needed, fast passing is therefore guaranteed.
Built-in liveliness detection algorithm:
Support face liveliness detection, not deceived by dolls, pictures and videos etc.
Stable and reliable under all lighting conditions:
Highly adaptive to strong light, weak light, back light and side light. 24 hours continuous operation with high accuracy.
Fast DB building from face pictures:
Import from platform, local USB disk, or unit itself. Multiple import possibilities from PC.

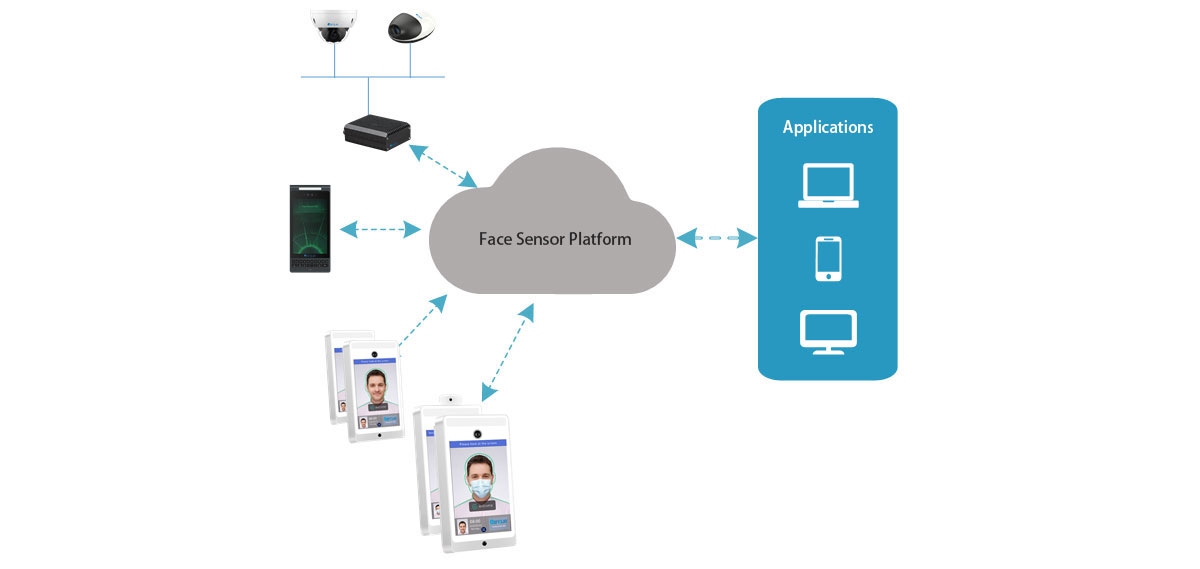

Integrated Web Management Platform
(Completely Workable over Private LAN)
Models
Multiple models to select for different application possibilities.
Access Control Unit:
Integrated Unit

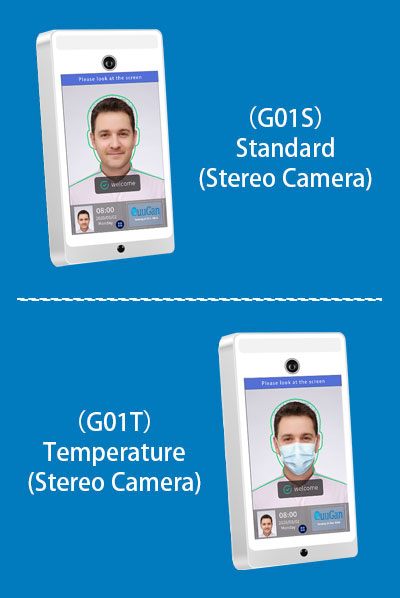

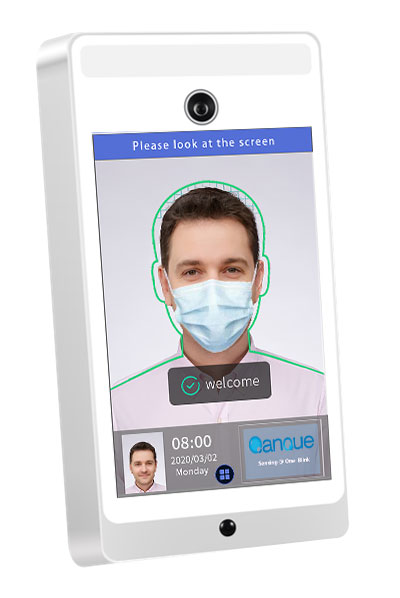

G01 – Light-weight FR access control unit with simplicity.
(Direct Deliverable)
G02 – Multi-function FR unit with intercom and surveillance possibilities.
(In Development)
Multi-part Unit
G05 – Multi-part FR unit with better protection of processing power.
(In Development)
Surveillance Inspector:
G08 – Mid-range FR system for surveillance and monitoring purpose.
(Direct Deliverable)
NNIE NPU acceleration
IP65 three-proofing design
Waterproof, dustproof, moisture-proof and anti-riot;
Completely Workable outdoor.
Fruitful communication protocols
Support MQTT/Http/Https/Socket etc.;
NC/COM/NO, Weigand26/34, RS485, LAN: 10/100/1000M;
SDK Support for 3rd party integration.
High reliability
Workable Temperature：-30C~65C;
Low power consumption with 24/7 work guarantee.
Embedded ID card reader (optional)
Possibility to measure temperature
Distance: 0-50cm; Accuracy: ±0.3℃;
Speed: 1s; Range: 30-45℃.
Dimension:270mm*150mm*18mm;Screen:8”

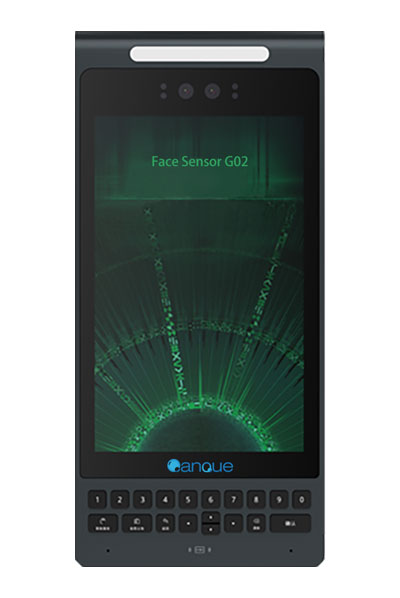

G02 – Multi-function FR unit with intercom and surveillance possibilities.
(In Development)
NPU chipset and Cortex A7 CPU
IP65 three-proofing design
Waterproof, dustproof, moisture-proof and anti-riot;
Tamper Sensor;
Completely Workable outdoor.
Fruitful communication protocols
Support MQTT/Http/Https/Socket etc.;
NC/COM/NO, Weigand26/34, RS485, LAN: 10/100/1000M;
SDK Support for 3rd party integration.
High reliability
Workable Temperature:-20C~60C；
Low power consumption with 24/7 work guarantee.
Embedded keypad and ID card reader (optional)
Support Video Intercom
Support Video Surveillance
Standard video streaming protocol.
Multi-part Unit

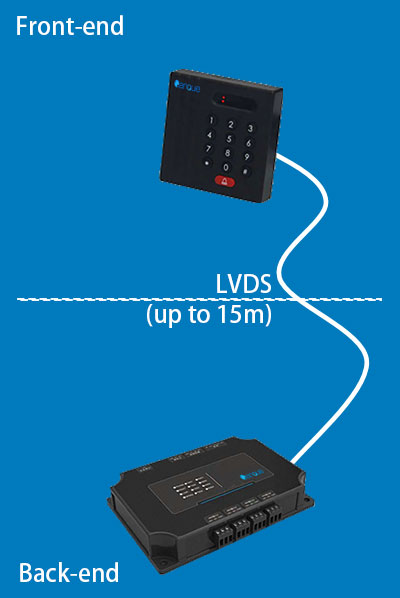

G05 – Multi-part FR unit with better protection of processing power.
(In Development)

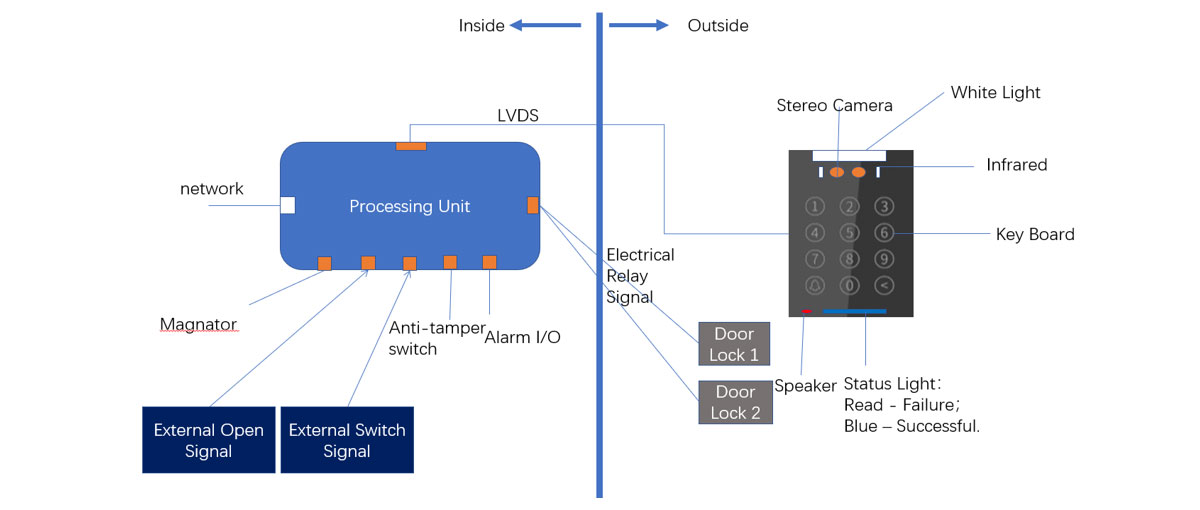

Front-end Terminal and Backend Processing Unit are Separately Located for Better Security
NPU chipset and Cortex A7 CPU
IP65 three-proofing design
Waterproof, dustproof, moisture-proof and anti-riot;
Tamper Sensor;
Completely Workable in outside situation.
Supports access control and alarming system fulfilling standard EN 50131
Embedded ID card reader (optional)
Support Intercom
Support Video Surveillance
Standard video streaming protocol.
Surveillance Inspector:
G08 – Mid-range FR system for surveillance and monitoring purpose.
(Direct Deliverable)

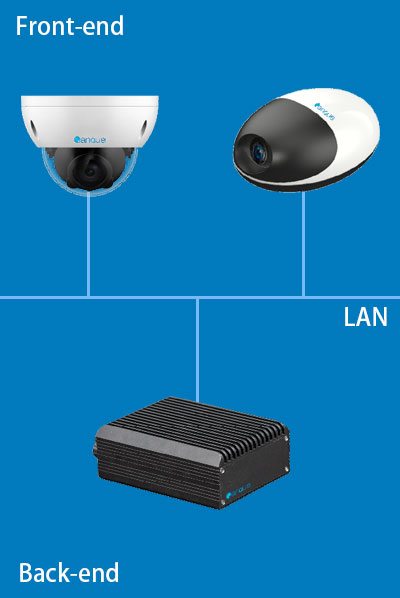

Specially Designed for Realtime Monitoring
Easy to Setup with Existing Camera System
Support Mid-range Recognition
Up to 8~10m;
Normal 5~6m.
Support TCP/IP, WiFi or 4G (optional) Communication
Equipped with RS232, RS485, Alarm I/O etc
Tailed for public security such as subway station and open site to monitor suspicious persons
Applications

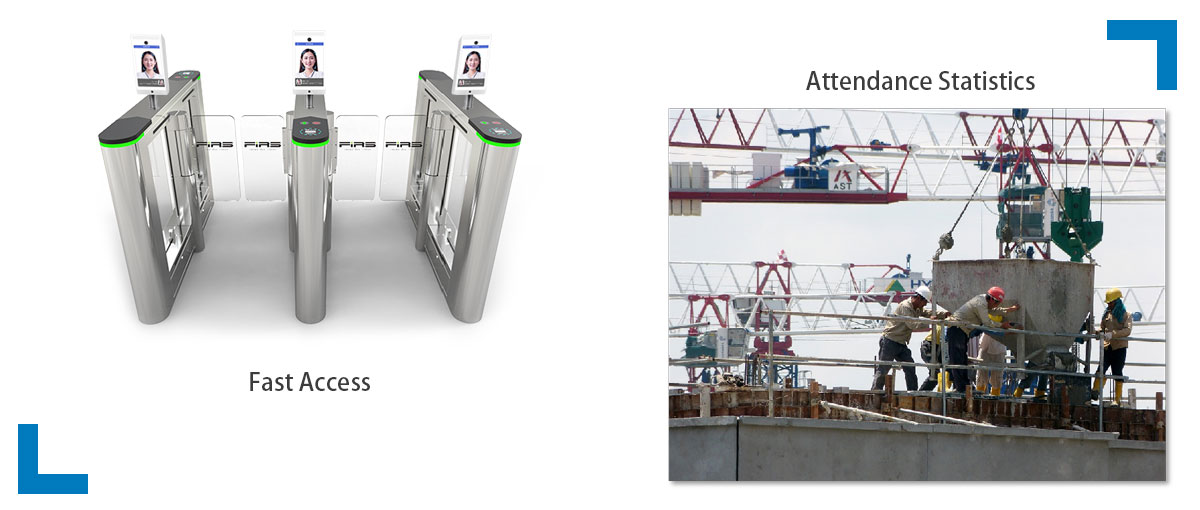

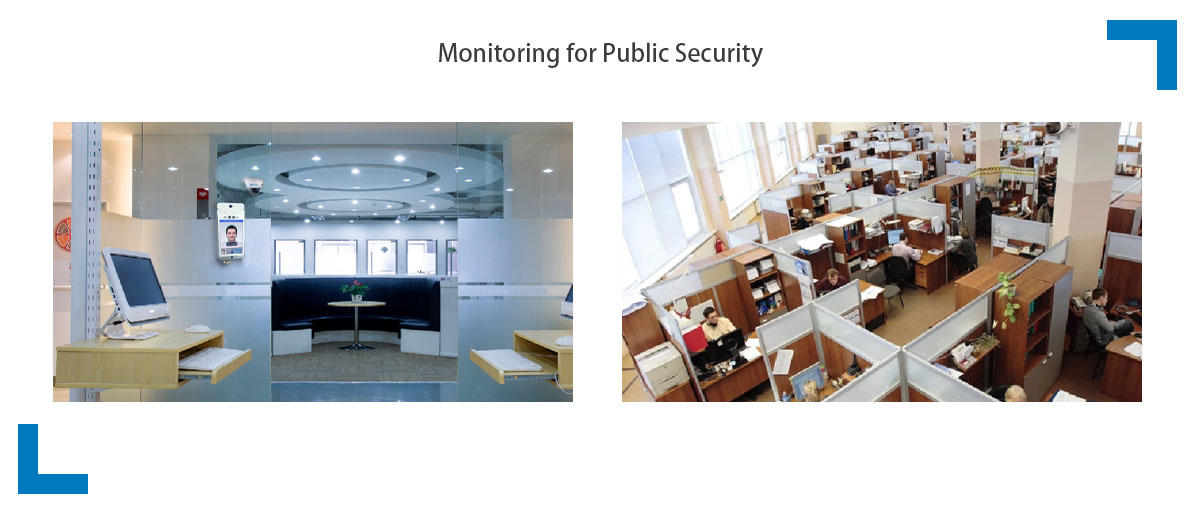

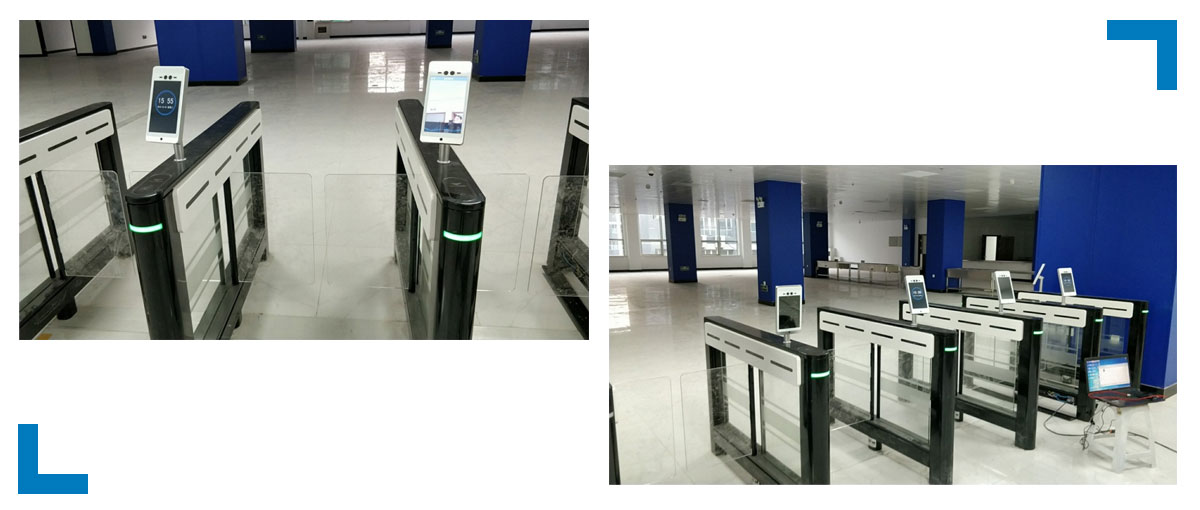

Suitable for multiple scenarios such as attendance, access control, gate access and public security.
