FSSensor

Advanced Fire/Smoke Monitoring Unit

Product Introduction

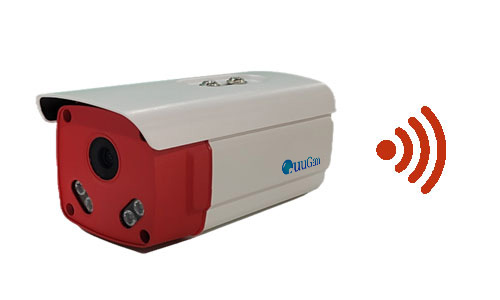

Gun-shape Fire/Smoke Camera

Product model

FSS-GIO-01


Video resolution: 1920*1080
Exposure Mode: Automatic exposure, white balance and gain control
Compression Bit Rate: 500K-4Mbps
Lens: Fixed 4mm, 6mm, 8mm, 12mm or 16mm
Output: Dual bit rate output

Performance

Image Sensor: 1/2.8’ CMOS sensor, 2M pixel
Recognition Object: Flame & Smoke
Recognition Distance: With 16mm lens can recognize fire with size 0.15mx0.15m at distance 100m
Response Speed: <3S
False alarm rate: <0.001% (Anti-interference of sunshine, flashlight, fake fire etc.)

Interface

4G SIM (optional): LTE-FDD B 1/3/5/8, LTE-TDD B 34/38/40/41
Protocols: TCP/IP/SMTP/HTTP/DHCP/ONVIF etc.
Power Input: DC 12V ; PoE
Input/Output: Direct Switch I/O; Audio I/O; Alarm I/O
Ingress Protection: IP67
Protection Level: TVS 8000V lightning protection; Double-layer lightning protection
Power Consumption: Max.7.5W

Application Scenarios

Indoor & Outdoor

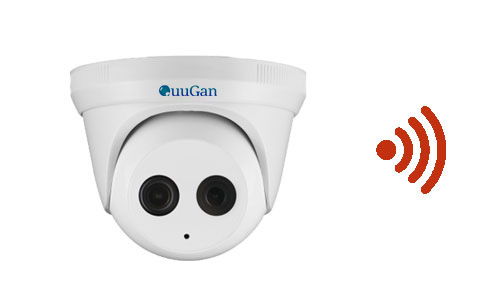

Ball-shape Fire/Smoke Camera



Product model

FSS-BI-01


Video resolution: 1920*1080
Exposure Mode: Automatic exposure, white balance and gain control
Compression Bit Rate: 500K-4Mbps
Lens: Fixed 4mm, 6mm or 8mm
Output: Dual bit rate output

Performance

Image Sensor: 1/2.7’ CMOS sensor, 2M pixel
Recognition Object: Flame & Smoke
Recognition Distance: With 6mm lens can recognize fire with size 0.15mx0.15m at distance 30m
Response Speed: <3S
False alarm rate: <0.001% (Anti-interference of sunshine, flashlight, fake fire etc.)

Interface

Protocols: TCP/IP/SMTP/HTTP/DHCP/ONVIF etc.
Power Input: DC 12V ; PoE
Input/Output: Direct Switch I/O; Audio I/O; Alarm I/O
Ingress Protection: IP67
Protection Level:TVS 6000V lightning protection; Double-layer lightning protection
Power Consumption:Max.6W

Application Scenarios

Indoor Only

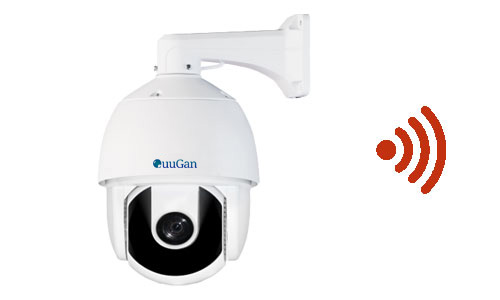

Remote Fire/Smoke Camera

Product model

FSS-R-01


Video resolution: 1920*1080
Exposure Mode: Automatic exposure, white balance and gain control
Pan & Tilt Angle: 0° - 360°; 0° - 90°
Compression Bit Rate: 500K-4Mbps
Lens: 5.3–130mm zoom with auto focus
Output: Dual bit rate output

Performance

Image Sensor: 1/1.8’ CMOS sensor, 2M pixel
Recognition Object: Flame & Smoke
Recognition Distance: 5km @ 4M² fire recognition
Response Speed: <3S
False alarm rate: <0.001% (Anti-interference of sunshine, flashlight, fake fire etc.)

Interface

Protocols: TCP/IP/SMTP/HTTP/DHCP/ONVIF etc.
Power Input: DC12V ; PoE
Input/Output: Direct Switch I/O; Audio I/O; Alarm I/O
Ingress Protection: IP67
Protection Level:TVS 8000V lightning protection; Double-layer lightning protection
Power Consumption:Max.18W

Application Scenarios

Forests, Scenic Spots, Industrial Parks etc.

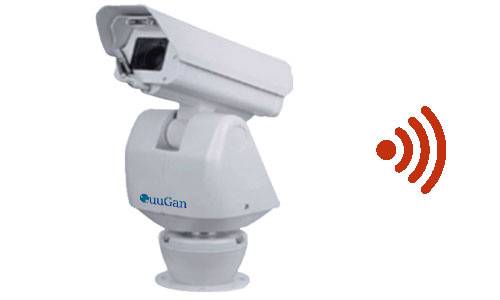

eXtra Remote Fire/Smoke Camera

Product model

FSS-R-01


Video resolution: 3840X2160
Exposure Mode: Automatic exposure, white balance and gain control
Pan & Tilt Angle: H 0° - 360°; V 0° - 120°
Compression Bit Rate: 500K-4Mbps
Lens: 6–190mm zoom with auto focus
Output: Dual bit rate output

Performance

Image Sensor: 1/1.8’ CMOS sensor, 2M pixel
Recognition Object: Flame & Smoke
Recognition Distance: 10km @ 4M² fire recognition
Response Speed: <3S
False alarm rate: <0.001% (Anti-interference of sunshine, flashlight, fake fire etc.)

Interface

Protocols: TCP/IP/SMTP/HTTP/DHCP/ONVIF etc.
Power Input: DC12V; PoE
Input/Output: Direct Switch I/O; Audio I/O; Alarm I/O
Ingress Protection: IP67
Protection Level:TVS 8000V lightning protection; Double-layer lightning protection
Power Consumption:Max.18W

Application Scenarios

Forests, Scenic Spots, Industrial Parks etc.

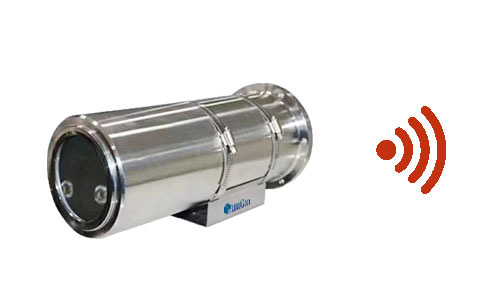

High Explosion-proof Fire/Smoke Camera

Product model

FSS-H-01


Video resolution: 1920*1080
Exposure Mode: Automatic exposure, white balance and gain control
Compression Bit Rate: 500K-4Mbps
Lens: Fixed 4mm, 6mm, 8mm, 12mm or 16mm
Output: Dual bit rate output

Performance

Image Sensor: 1/2.7’ CMOS sensor, 2M pixel
Recognition Object: Flame & Smoke
Recognition Distance: With 16mm lens can recognize fire with size 0.15mx0.15m at distance 100m
Response Speed: <3S
False alarm rate: <0.001% (Anti-interference of sunshine, flashlight, fake fire etc.)

Interface

Protocols: TCP/IP/SMTP/HTTP/DHCP/ONVIF etc.
Power Input: DC 12V ; PoE
Input/Output: Direct Switch I/O; Audio I/O; Alarm I/O
Ingress Protection: IP68
Protection Level:Explosion proof; TVS 8000V lightning protection; Double-layer lightning protection
Power Consumption:Max.6W

Application Scenarios

High-risk environments such as Chemical Factories and Gas Stations

Full-Functional NVR

Product model

FFNvr-N16


Video Input: 16-ch
Video Compression: H.265
Record Resolution: 1920x1080 / 1280x720
Preview Resolution: 1920x1080 / 1280x720
Output: 1 HDMI + 1 VGA

Interface

Audio: Line Out
Harddisk: 1 SATA (up to 4TB)
USB: 2 (support USB flash memory and USB mouse)
Ethernet: 5 10/100M
Power Supply: DC 12V 2A

Hardware

Working Temperature: -10℃ - +50℃
Working Humidity: 10% - 90%
Dimension: 330x55x230mm

Software

Set up each channel’s record resolution and frame rate freely
Scheduled record and continuous record
Intelligent searching for historical DVR files
Free DDNS,Support P2P
Remote monitor, remote playback, remote recording and remote download by IE
Support local and remote PTZ control
Multi-user’s authority management

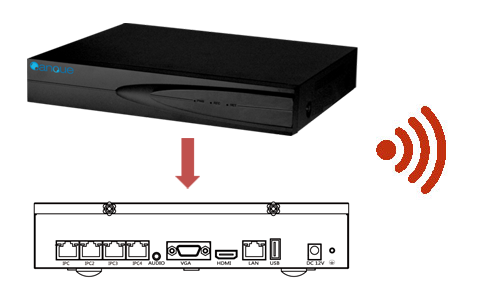

Full-Functional NVR with with 4-ch POE

Product model

FFNvr-POE4


Video Input: 4-ch with full POE support
Video Compression: H.265
Record Resolution: 1920x1080 / 1280x720
Preview Resolution: 1920x1080 / 1280x720
Output: 1 HDMI + 1 VGA

Interface

Audio: Line In/Out
Harddisk: 1 SATA (up to 6TB)
USB: 2 (support USB flash memory and USB mouse)
Ethernet: 5 10/100M
Power Supply: DC 52V 1.25A

Hardware

Working Temperature: -10℃ - +50℃
Working Humidity: 10% - 90%
Dimension: 255x218x44mm

Software

Set up each channel’s record resolution and frame rate freely
Scheduled record and continuous record
Intelligent searching for historical DVR files
Free DDNS,Support P2P
Remote monitor, remote playback, remote recording and remote download by PMS
Support local and remote PTZ control
Multi-user’s authority management

Full-Functional NVR with with 8-ch POE

Product model

FFNvr-POE8


Video Input: 8-ch with full POE support (with 8-ch extra normal camera input)
Video Compression: H.265
Record Resolution: 1920x1080 / 1280x720
Preview Resolution: 1920x1080 / 1280x720
Output: 1 HDMI + 1 VGA

Interface

Audio: Line In/Out
Harddisk: 1 SATA (up to 6TB)
USB: 2 (support USB flash memory and USB mouse)
Ethernet: 10 10/100M
Power Supply: DC 52V 1.85A

Hardware

Working Temperature: -10℃ - +50℃
Working Humidity: 10% - 90%
Dimension: 255x218x44mm

Software

Set up each channel’s record resolution and frame rate freely
Scheduled record and continuous record
Intelligent searching for historical DVR files
Free DDNS,Support P2P
Remote monitor, remote playback, remote recording and remote download by PMS
Support local and remote PTZ control
Multi-user’s authority management

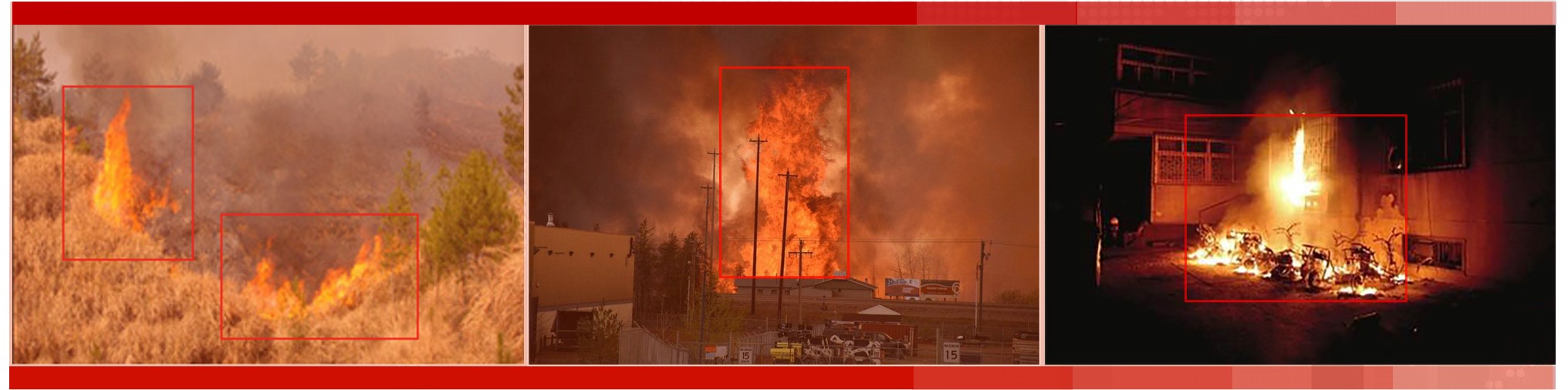

Potential Applications

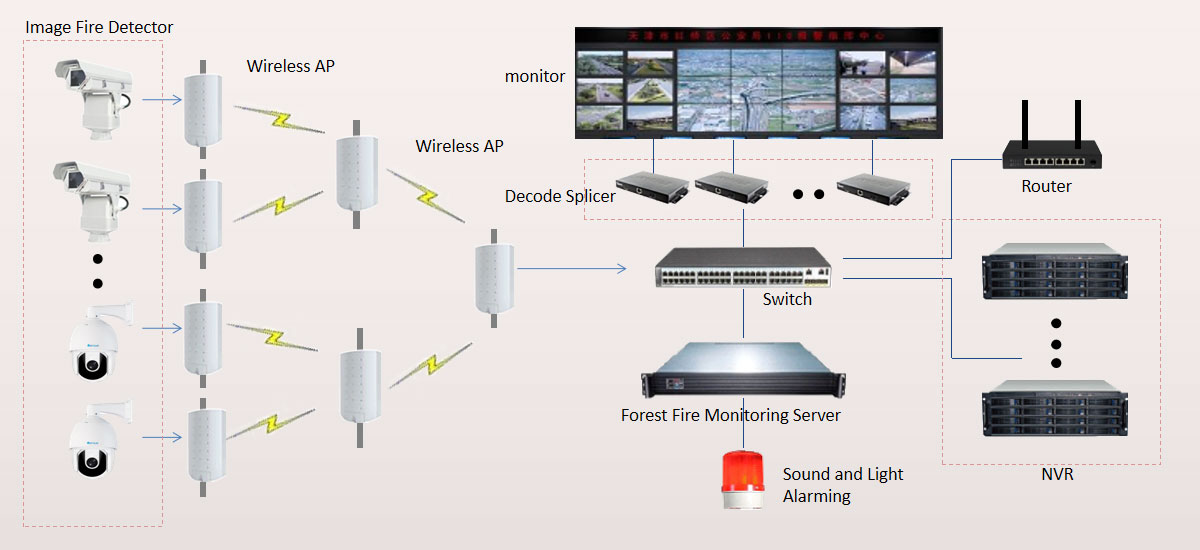

Forest Fire/Smoke Monitoring





Charging Pile Fire/Smoke Monitoring

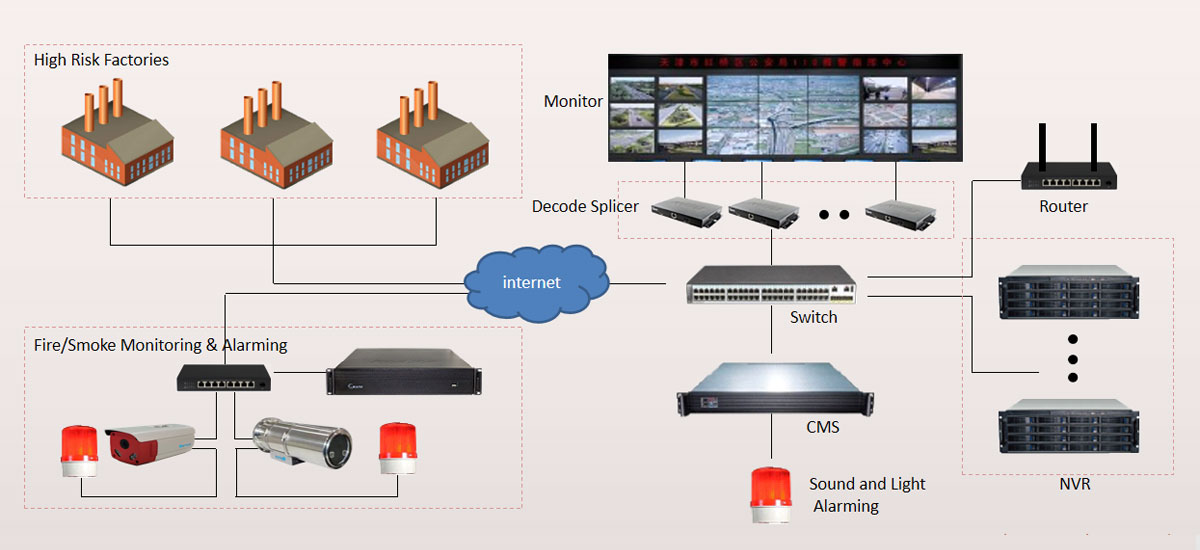

High-risk Factory Fire/Smoke Monitoring
